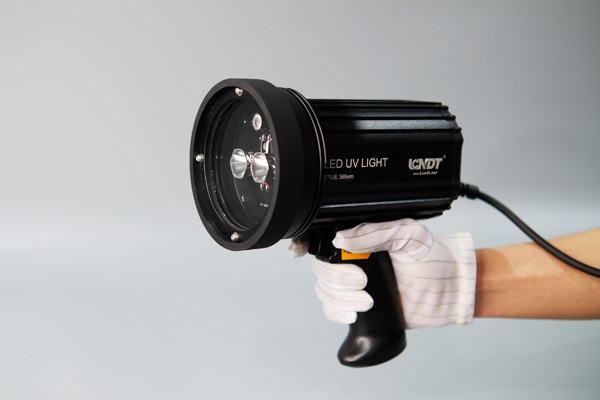

Strong Powerful LED UV Inspection Lamp UV-200 Lights (Dual UV & Whi



product image
product image
product image
product image

Product Characteristics

  • UV Intensity: > 20,000 uw/cm2
  • Super Strong UV Intensity, No Warm Time, No Fan
  • Work Continuously, No Heat, Life Time > 30,000 Hours
  • Optional Li battery is available, For 3 hours working

    • Robust, High UV-A , Economical The Best Substitution of Traditional Lamps

    Features:

    • Powerful UV LEDs applied (365nm, Pure UV-A)
    • Powerful White LED is also provided
    • UV Intensity at 15 inches (38 cm)
      • UV-200: > 20,000 uw/cm²
    • Diameter UV coverage area at 15 inches (38 cm)
      • UV-200:  7.7”(195mm)
    • Low visible light emission – less than 2 foot-candles (22 lux)
    • Supplied with a Certificate of Conformance for both wavelengths and output measurements.
    • Meet ASTM UV-A intensity and LED wavelength specifications for FPI and MPI.
    • Water and dust proof, 2.5m soft power cord exactly suit to any poor working conditions
    • CE Approved
    • UV-LED Risk Class acc. to DGZfP EM6 and BGFE：3


     Spot uniformity compared with traditional Mercury Vapor:



    Optional Lamp Holder :





    Why we do not need an Wood Glass UV filter?

    The UV LEDs we adopt is high quality that produce the optimum 365 nm±5nm wavelength (narrow-band), no UV-B and UV-C, very low visible light emission , so there is no technical reason for a Wood's Glass filter.To Military or Aerospace industry which is very sensitive to visible light, you can choose PURE-365 UV filter, remove 99% visible light.


    LED UV Lights
    Traditional Black lights
    Mercury Vapor
    HID blubs
    UV Intensity
    		 >9,000uw/cm² >5,000uw/cm² >6,000uw/cm²
    Lifetime
    		 30,000 hours 800- 3000 hours
    Heat
    		 Low power consumption, low heat, temperature rise＜5℃ Not only emit UV lights，but also infrared lights. temperature rise >60℃ when fans applied, dangerous for users
    Warm time
    		 0 seconds >10 Minutes >5 Minutes
    Weight
    1.5 pounds
    11-18 pounds
    Environmental
    		 Green High power consumption, Mercury-containing, high radiation   High power consumption, high voltage start


    Standard package includes:

    Black Light



    UV absorbing spectacles

    Soft Carrying Bag

    Power Supply

    2.5m Cord to connect the light to the power supply.

    Optional Spare parts:

    PURE-365 Wood glass UV Filter



    High performance Li battery

    Rugged Carrying Case, Lamp Holder




    Power Supply: 115-240 VAC / 50-60 Hz (Universal)
    Weight: 1.5 pounds (0.7Kg)
    Dimensions: 8.6" x 9.4" x 4.3"(220 x 240 x 110mm L x W x H)
