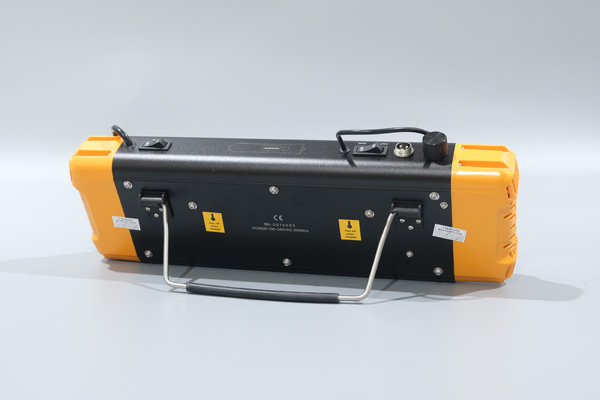

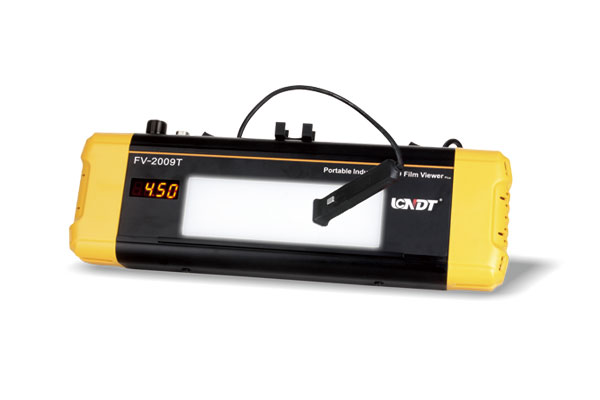

Intelligent LED Film Viewer + Densitometer FV-2009T
Is FV-2009T only simply combine the viewer and densitometer together?
No,It isn't. FV-2009T is not simply merge view and densimeter together, but integrate two revolutionary units together, and complement each other. Not only saves you valuable desktop space, but also get rid of the disadvantage of traditional B&W densitometer, which aiming point is not convenient, then can't measure the density of large size film. Use of luminous surface of viewer as the initial intensity light source for the densitometer, measure where as you touch with pen type probe, convenient and intuitive.
Spare parts list:
Foot pedal: 1
Carrying bag:1
Light mask (150*45mm):1
Instruction(English): 1
Guarantee and report(English): 1
| Max. Luminance: >=120,000Cd/M2(376,000Lu x ) | Uniformity: g>=0.95 |
| Diffusion Factor: σ'>=0.95 | Viewer window: 200 x 60mm |
| Accuracy：±0.02D | Max. Density(Densitometer)>= 5.0D |
| Surface temp. rise <= 15oC After 12 hours continues ma x imum luminance |
POWER: 85-264VAC 47~63Hz. (Full range) |
| Dimension: 17.9 x 5.5 x 2.6" 455 x 140 x 65mm (L*W*H) |
Weight:5.5pounds(2.5kg) |
| CE Approved | 2 Years Free Warranty |
